新能源汽车电磁屏蔽格兰头
360度防电磁 性能优
产品材质:金属:优质不锈钢，黄铜镀镍制成,橡胶:硅橡胶
螺牙规格:M/PG/NPT/G(PF) 产品认证:CE,EX,ROHS
工作温度:-60°C至250°C 防护等级:IP68
使用方法:将本体固定机板,旋紧迫紧头即可固定电缆
BL系列锁线范围大
推荐优质产品
加长螺纹型号如：DQM-I-M20×1.5-14EMC/L=12

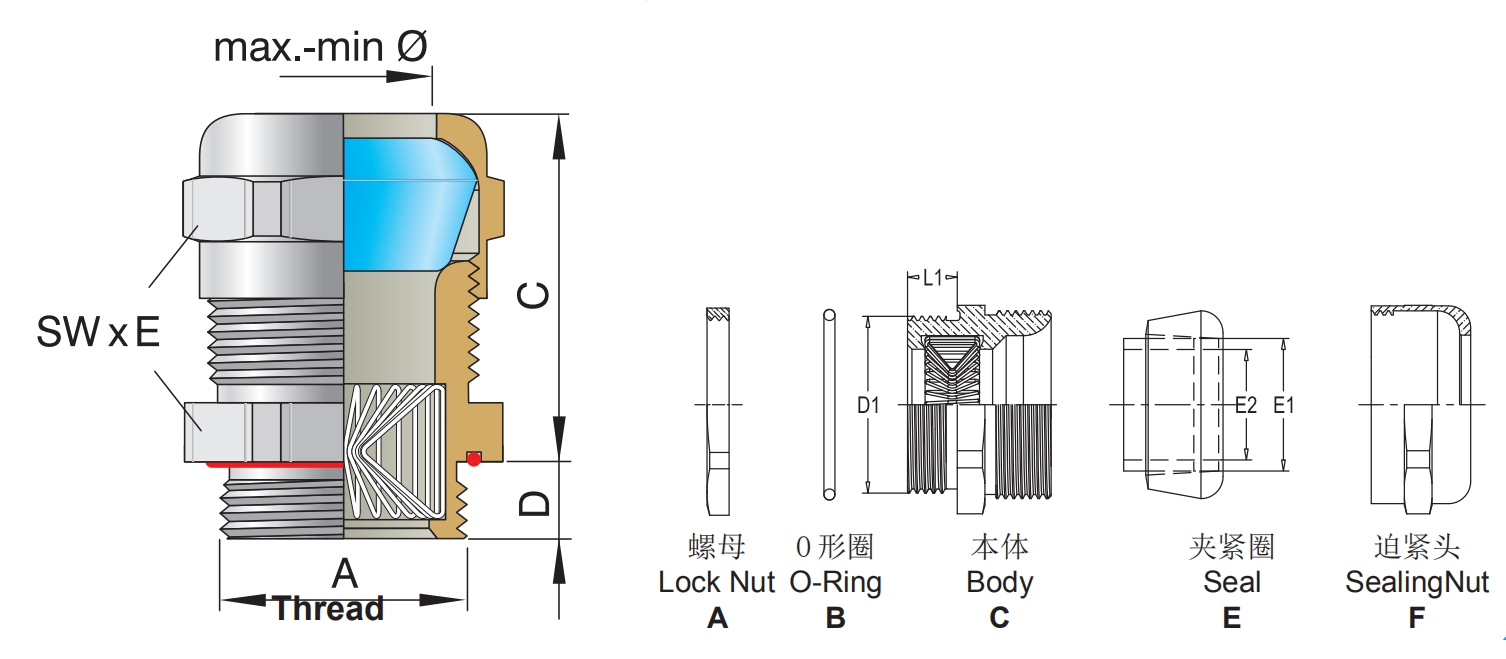

| 公制螺纹 M |
德制螺纹 PG |
美制螺纹 NPT |
英制螺纹 G |
适用
电缆
|
内层橡胶
E1 |
外层橡胶
E2 |
螺纹长度
L1 |
加长型号
螺纹长度
L1 |
接合长度
L2+L3 |
扳手
A/F |
| HSK-X-M12×1.5-8EMC |
HSK-X-PG7-8EMC |
HSK-X-NPT1/4-8EMC |
HSK-X-G1/4-8EMC |
2-8 |
2-5 |
5-8 |
7 |
12 |
21 |
18 |
| HSK-X-M16×1.5-11EMC |
HSK-X-PG9-11EMC |
|
|
4-11 |
4-7 |
7-11 |
7 |
12 |
25 |
20 |
| HSK-X-M18×1.5-11EMC |
HSK-X-PG11-11EMC |
HSK-X-NPT3/8-11EMC |
HSK-X-G3/8-11EMC |
4-11 |
4-7 |
7-11 |
7 |
12 |
25 |
22 |
| HSK-X-M20×1.5-14EMC |
HSK-X-PG13.5-14EMC |
HSK-X-NPT1/2-14EMC |
HSK-X-G1/2-14EMC |
5-14 |
5-9 |
9-14 |
8 |
12 |
29 |
24 |
| HSK-X-M22×1.5-14EMC |
HSK-X-PG16-14EMC |
|
|
5-14 |
5-9 |
9-14 |
8 |
12 |
29 |
26 |
| HSK-X-M24×1.5-20EMC |
|
|
|
11-20 |
11-16 |
16-20 |
9 |
13 |
30 |
30 |
| HSK-X-M25×1.5-20EMC |
HSK-X-PG21-20EMC |
HSK-X-NPT3/4-20EMC |
HSK-X-G3/4-20EMC |
11-20 |
11-16 |
16-20 |
9 |
13 |
30 |
30 |
| HSK-X-M27×1.5-20EMC |
|
|
|
11-20 |
11-16 |
16-20 |
9 |
13 |
30 |
30 |
| HSK-X-M30×2.0-25EMC |
|
|
|
15-25 |
15-20 |
20-25 |
11 |
15 |
32 |
36 |
| HSK-X-M32×1.5-25EMC |
|
HSK-X-NPT1-25EMC |
HSK-X-G1-25EMC |
15-25 |
15-20 |
20-25 |
11 |
15 |
32 |
36 |
| HSK-X-M33×2.0-25EMC |
|
|
|
15-25 |
15-20 |
20-25 |
11 |
15 |
32 |
36 |
| HSK-X-M36×2.0-25EMC |
|
|
|
15-25 |
15-20 |
20-25 |
11 |
15 |
32 |
40 |
| HSK-X-M40×1.5-32EMC |
HSK-X-PG29-32EMC |
HSK-X-NPT1-1/4-32EMC |
HSK-X-G1-1/4-32EMC |
20-32 |
20-26 |
26-32 |
11 |
15 |
35 |
44 |
|
HSK-X-PG36-42EMC |
|
|
31-42 |
31-35 |
35-42 |
11 |
15 |
39 |
58 |
| HSK-X-M50×1.5-42EMC |
HSK-X-PG42-42EMC |
HSK-X-NPT1-1/2-42EMC |
HSK-X-G1-1/2-42EMC |
31-42 |
31-35 |
35-42 |
11 |
15 |
39 |
58 |
| HSK-X-M63×1.5-54EMC |
HSK-X-PG48-54EMC |
HSK-X-NPT2-54EMC |
HSK-X-G2-54EMC |
41-54 |
41-46 |
46-54 |
14 |
18 |
40 |
68 |
| HSK-X-M72×2.0-54EMC |
|
|
|
50-65 |
50-60 |
60-65 |
15 |
20 |
47 |
81 |
| HSK-X-M75×1.5-54EMC |
|
HSK-X-NPT2-1/2-54EMC |
HSK-X-G2-1/2-54EMC |
50-65 |
50-60 |
60-65 |
15 |
20 |
47 |
81 |
| HSK-X-M75×1.5-65EMC |
|
HSK-X-NPT2-1/2-65EMC |
HSK-X-G2-1/2-65EMC |
54-65 |
54-58 |
58-65 |
15 |
20 |
47 |
81 |
| HSK-X-M75×1.5-65EMC |
|
HSK-X-NPT2-1/2-65EMC |
HSK-X-G2-1/2-65EMC |
54-65 |
54-58 |
58-65 |
15 |
20 |
47 |
81 |
| HSK-X-M85×2.0-77EMC |
|
HSK-X-NPT3-77EMC |
HSK-X-G3-77EMC |
65-77 |
65-70 |
70-77 |
15 |
20 |
49 |
96 |
| HSK-X-M90×2.0-77EMC |
|
|
|
65-77 |
65-70 |
70-77 |
15 |
20 |
49 |
96 |
| HSK-X-M100×2.0-89EMC |
|
HSK-X-NPT3-1/2-89EMC |
HSK-X-G3-1/2-89EMC |
77-89 |
77-81 |
81-89 |
20 |
25 |
50 |
110 |
| HSK-X-M110×2.0-98EMC |
|
HSK-X-NPT4-98EMC |
HSK-X-G4-98EMC |
89-98 |
89-94 |
94-98 |
20 |
25 |
59 |
120 |
| HSK-X-M120×2.0-110EMC |
|
|
|
100-110 |
100-105 |
105-110 |
20 |
25 |
59 |
125 |
| HSK-X-M125×2.0-110EMC |
|
|
|
100-110 |
100-105 |
105-110 |
20 |
25 |
59 |
135 |
| HSK-X-M150×2.0-130EMC |
|
|
|
120-130 |
120-125 |
125-130 |
20 |
25 |
59 |
160 |
|
